Plastic Biaxial Polypropylene Geogrids

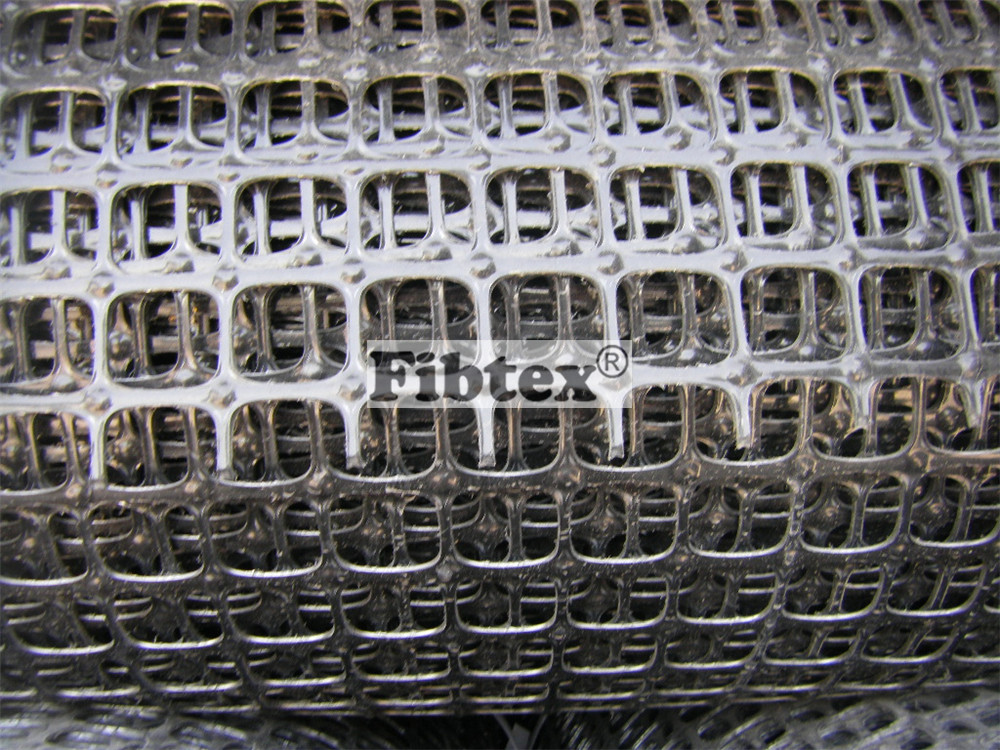

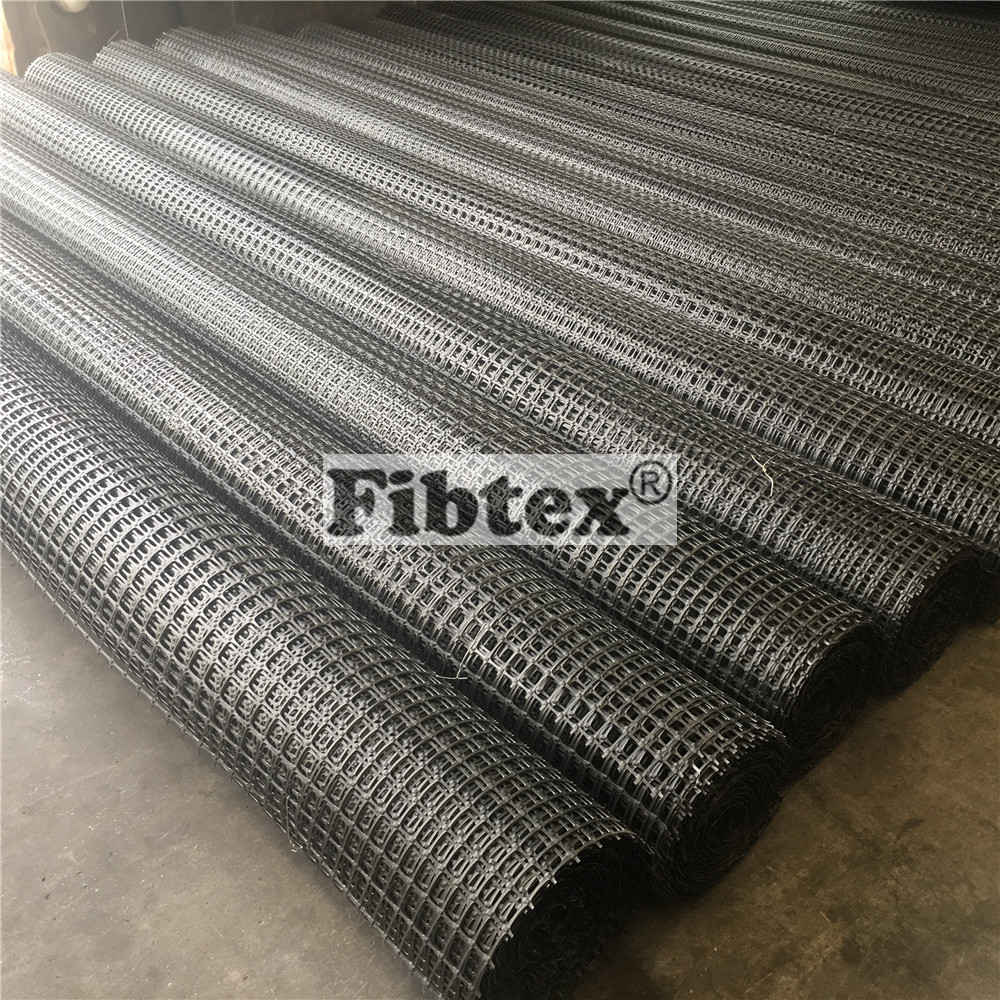

Plastic BX Polypropylene Geogrid formed is a monolithic geogrid and having thick integral nodes and uniform square/ rectangular apertures. The main advantages of Biaxial Polypropylene Geogrid: Base reinforcement and soil stabilization of low load bearing soils. Considerable savings in granular thickness without compromising performance. Control of differential settlement and rutting. Increased pavement life due to increased TBR (Traffic Benefit Ratio) and LCR (Layer coefficient ratio). Resistant to naturally encountered chemicals in the soil and micro-organisms attack and formulated to resist ultraviolet degradation. BX Polypropylene Geogrid is used for soil stabilization, sub-base reinforcement, foundation support, heavy duty pavements, and railway ballast reinforcement over soft foundations, access roads to oil platforms and other highway challenges.
Certificate: ISO9001, SGS, CE
Features:
- Reducing aggregate fill thicknesses
- Reducing sub-excavation
- Simplifying construction
- Extending service life of pavement
- Reducing labour
- Reducing equipment requirements
- Improving bearing capacity of foundation
- Preventing cracking and subsiding
- Convenient to construct, reducing cost and mantaining expense
Improved performance for:
- Municipal roads
- Highways
- Railway ballast
- Site access roads
- Haul roads
- Parking lots
- Industrial shipping yards
- Foundation footings- and more
Application

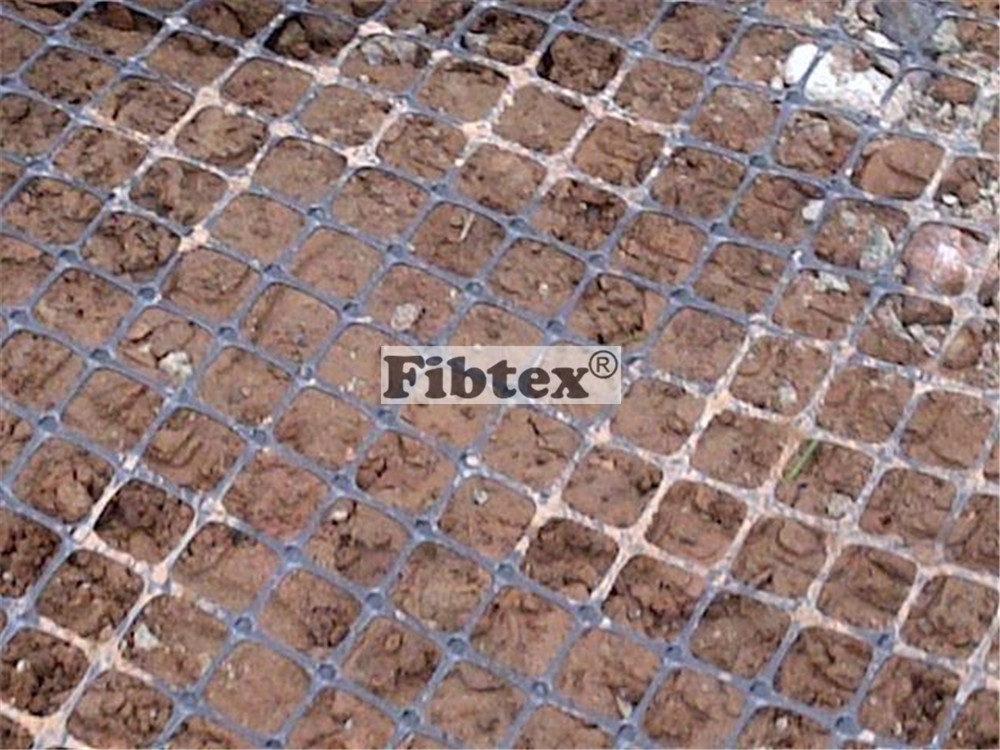

• Base reinforcement • Subgrade reinforcement
• Slope reinforcement • Embankment stabilization
• Road Reinforcement • Expressway Reinforcement
• Railway Reinforcement • Port Reinforcement
• Airport Reinforcement • Landfill Reinforcement
• Irrigation Project • Sea Reclamation Project
BX4040 Technical Specifications
|
Specification |
Test Method |
Unit |
BX1515 |
BX2020 |
BX2525 |
BX3030 |
BX4040 |
BX1100 |
BX1200 |
BX3030L |
||||||||
|
Index |
|
Unit |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
|
Ultimate Tensile Strenth |
D6637 |
KN/m |
15 |
15 |
20 |
20 |
25 |
25 |
30 |
30 |
40 |
40 |
12.4 |
19.0 |
19.2 |
28.8 |
30 |
30 |
|
Aperture Size |
|
mm |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
25 |
33 |
25 |
33 |
65 |
65 |
|
Minimum Rib Thickness |
|
mm |
1.0 |
0.8 |
1.5 |
1.1 |
1.8 |
1.4 |
2.2 |
1.7 |
2.5 |
2.0 |
1.0 |
0.8 |
1.4 |
1.27 |
1.7 |
1.5 |
|
Tensile Strength @2% Strain |
D6637 |
KN/m |
6 |
6 |
7 |
7 |
9 |
9 |
11 |
11 |
15 |
15 |
4.1 |
6.6 |
6 |
9 |
11 |
11 |
|
Tensile Strength @5% Strain |
D6637 |
KN/m |
11 |
11 |
13 |
13 |
17 |
17 |
21 |
21 |
27 |
27 |
8.5 |
13.4 |
11.8 |
19.6 |
21 |
21 |
|
Junction Efficiency |
|
% |
95 |
95 |
95 |
95 |
95 |
95 |
95 |
95 |
||||||||
|
Flexural Stiffness |
D7748 |
mg-cm |
690,000 |
780,000 |
860,000 |
960,000 |
1,000,000 |
250,000 |
750,000 |
960,000 |
||||||||
|
Aperture Stability |
|
m-N/deg |
0.30 |
0.50 |
0.62 |
0.75 |
0.85 |
0.32 |
0.65 |
0.75 |
||||||||
|
Resistance to Installation Damage |
|
SC/SW/GP |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
||||||||
|
Resistance to Long Term Degradation |
|
% |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
||||||||
|
Resistance to UVDegradation |
D4355 |
% |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
||||||||
|
Minimum Cabon Black |
|
% |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
||||||||
|
Unit Weight |
|
g/m2 |
175-210 |
220-250 |
260-300 |
300-340 |
450-500 |
180-210 |
280-310 |
320-360 |
||||||||
|
Rolls Dimensions (Length, Width) |
|
m |
100*3.95 100*5 100*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 |
75*3.95 75*5 75*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 50*5 50*5.95 |
||||||||
Note: MD = Machine Direction; TD = Transverse Direction
Fibtex Laboratory is improving continuously with the purpose of assuring reliable quality.Geotec geosynthetics reserves the right to change the product specifications without further notification.
Package
- Straps for rolls tightening.
- Tape used as per requirement.
Loading Capacity For One 40HC Container
|
Product |
Rolls |
Quantity |
|
GG1515 |
180 |
53,325.0 m2 |
|
GG2020 |
220 |
43,450.0 m2 |
|
GG3030 |
130 |
25,675.0 m2 |
|
GG4040 |
90 |
17,775.0 m2 |
Loading Photos
Additional Info
| Packaging: | Nude | Productivity: | 150,000 sqm / day |
| Brand: | Fibtex | Transportation: | Ocean,Land,Air,Fedex etc. |
| Place of Origin | Shandong, China | MOQ | 1x40HC |
| HS Code | 39269090.90 | Port: | Qingdao |
