Base Reinforcement Polypropylene Biaxial Geogrid
Base Reinforcement PP Biaxial Geogrid, with characteristics such as strength, high modulus, chemical-biological and U.V. resistance, and low vulnerability to construction damage, are a cost effective solution to soft ground applications. Base Reinforcement Geogrids have been engineered to provide strength in both directions, and can be used for reinforcement of small slopes and as secondary reinforcement in retaining wall structures.
Certificate: ISO9001, SGS, CE
Features:
- Reducing aggregate fill thicknesses
- Reducing sub-excavation
- Simplifying construction
- Extending service life of pavement
- Reducing labour
- Reducing equipment requirements
- Improving bearing capacity of foundation
- Preventing cracking and subsiding
- Convenient to construct, reducing cost and mantaining expense
Improved performance for:
- Municipal roads
- Highways
- Railway ballast
- Site access roads
- Haul roads
- Parking lots
- Industrial shipping yards
- Foundation footings- and more

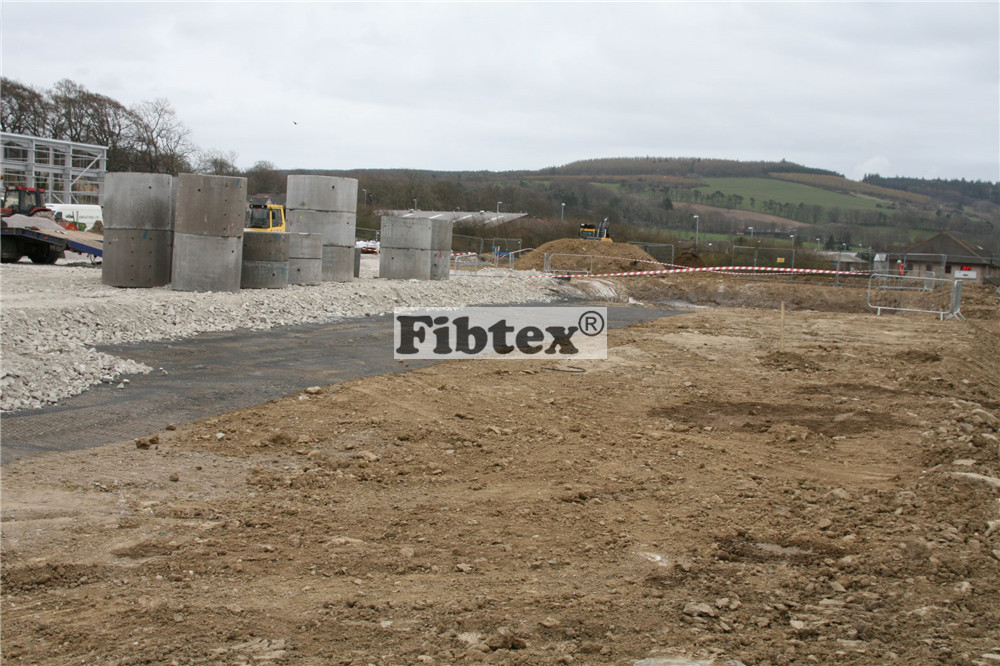

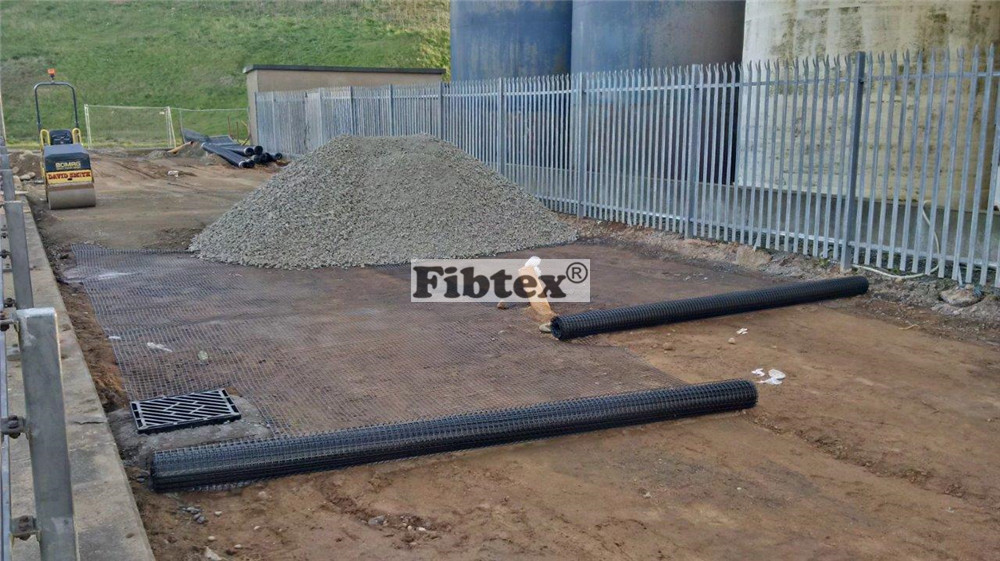

Application
• Base reinforcement • Subgrade reinforcement
• Slope reinforcement • Embankment stabilization
• Road Reinforcement • Expressway Reinforcement
• Railway Reinforcement • Port Reinforcement
• Airport Reinforcement • Landfill Reinforcement
• Irrigation Project • Sea Reclamation Project
BX4040 Technical Specifications
|
Specification |
Test Method |
Unit |
BX1515 |
BX2020 |
BX2525 |
BX3030 |
BX4040 |
BX1100 |
BX1200 |
BX3030L |
||||||||
|
Index |
|
Unit |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
|
Ultimate Tensile Strenth |
D6637 |
KN/m |
15 |
15 |
20 |
20 |
25 |
25 |
30 |
30 |
40 |
40 |
12.4 |
19.0 |
19.2 |
28.8 |
30 |
30 |
|
Aperture Size |
|
mm |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
25 |
33 |
25 |
33 |
65 |
65 |
|
Minimum Rib Thickness |
|
mm |
1.0 |
0.8 |
1.5 |
1.1 |
1.8 |
1.4 |
2.2 |
1.7 |
2.5 |
2.0 |
1.0 |
0.8 |
1.4 |
1.27 |
1.7 |
1.5 |
|
Tensile Strength @2% Strain |
D6637 |
KN/m |
6 |
6 |
7 |
7 |
9 |
9 |
11 |
11 |
15 |
15 |
4.1 |
6.6 |
6 |
9 |
11 |
11 |
|
Tensile Strength @5% Strain |
D6637 |
KN/m |
11 |
11 |
13 |
13 |
17 |
17 |
21 |
21 |
27 |
27 |
8.5 |
13.4 |
11.8 |
19.6 |
21 |
21 |
|
Junction Efficiency |
|
% |
95 |
95 |
95 |
95 |
95 |
95 |
95 |
95 |
||||||||
|
Flexural Stiffness |
D7748 |
mg-cm |
690,000 |
780,000 |
860,000 |
960,000 |
1,000,000 |
250,000 |
750,000 |
960,000 |
||||||||
|
Aperture Stability |
|
m-N/deg |
0.30 |
0.50 |
0.62 |
0.75 |
0.85 |
0.32 |
0.65 |
0.75 |
||||||||
|
Resistance to Installation Damage |
|
SC/SW/GP |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
||||||||
|
Resistance to Long Term Degradation |
|
% |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
||||||||
|
Resistance to UVDegradation |
D4355 |
% |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
||||||||
|
Minimum Cabon Black |
|
% |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
||||||||
|
Unit Weight |
|
g/m2 |
175-210 |
220-250 |
260-300 |
300-340 |
450-500 |
180-210 |
280-310 |
320-360 |
||||||||
|
Rolls Dimensions (Length, Width) |
|
m |
100*3.95 100*5 100*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 |
75*3.95 75*5 75*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 50*5 50*5.95 |
||||||||
Note: MD = Machine Direction; TD = Transverse Direction
Fibtex Laboratory is improving continuously with the purpose of assuring reliable quality.Geotec geosynthetics reserves the right to change the product specifications without further notification.
Package
- Straps for rolls tightening.
- Tape used as per requirement.
Loading Capacity For One 40HC Container
|
Product |
Rolls |
Quantity |
|
GG1515 |
180 |
53,325.0 m2 |
|
GG2020 |
220 |
43,450.0 m2 |
|
GG3030 |
130 |
25,675.0 m2 |
|
GG4040 |
90 |
17,775.0 m2 |
Loading Photos
Additional Info
| Packaging: | Nude | Productivity: | 150,000 sqm / day |
| Brand: | Fibtex | Transportation: | Ocean,Land,Air,Fedex etc. |
| Place of Origin | Shandong, China | MOQ | 1x40HC |
| HS Code | 39269090.90 | Port: | Qingdao |
