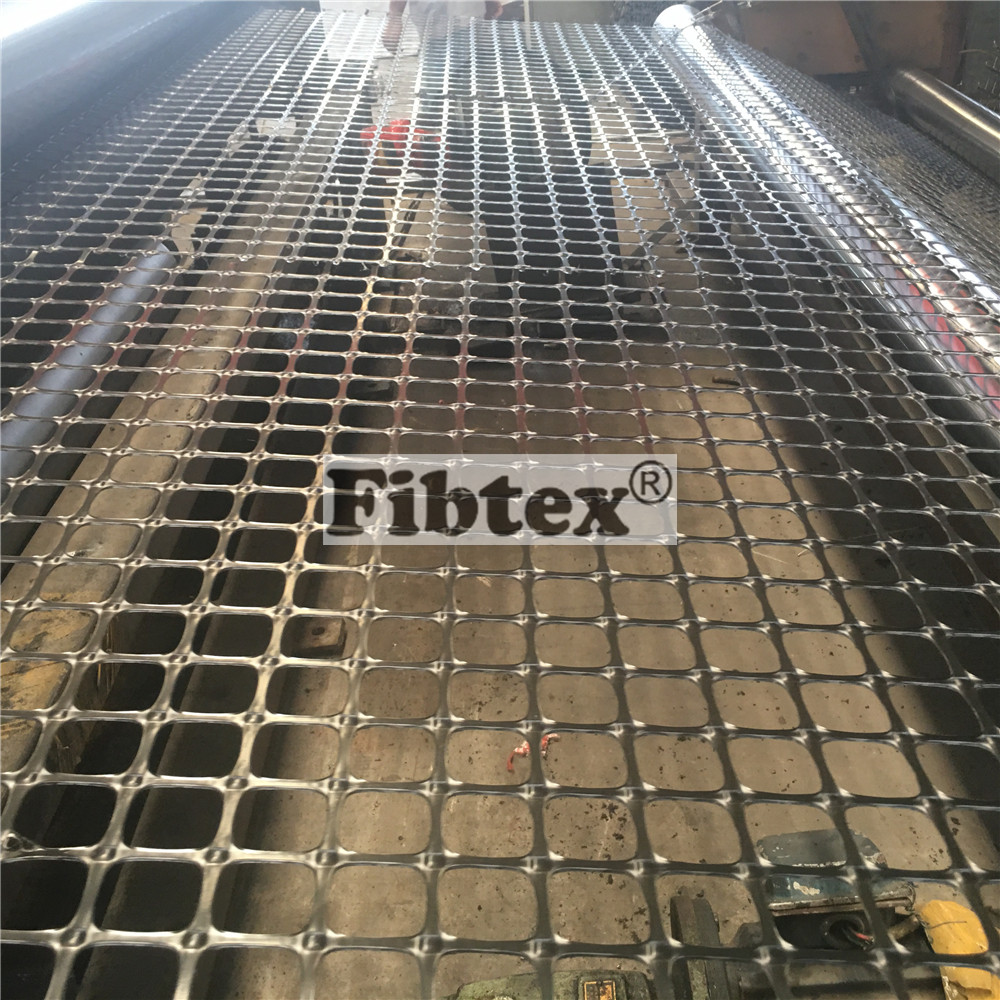

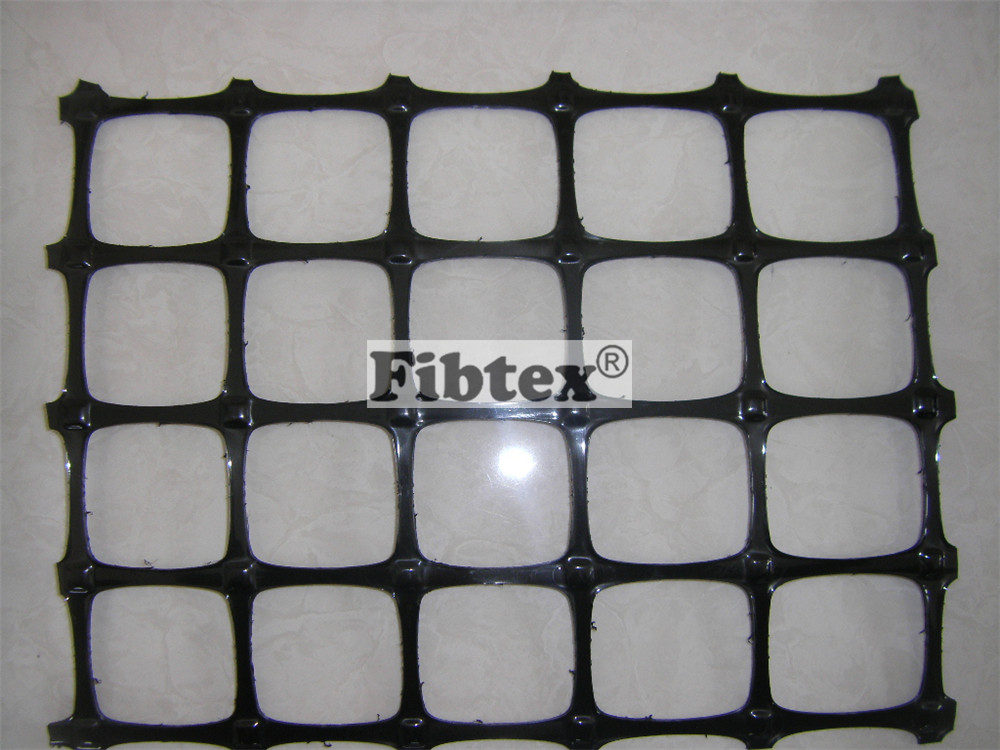

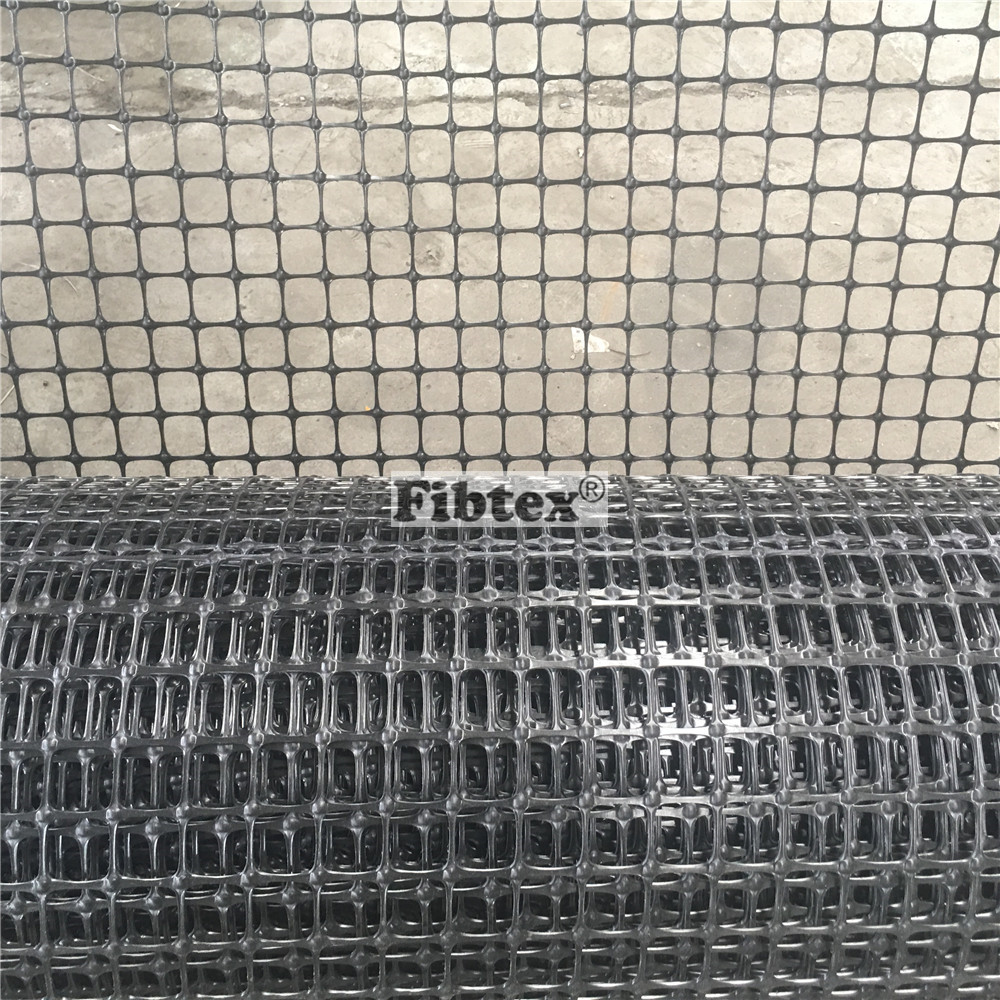

Polypropylene Biaxial Geo Grid
Improve roadways, highways and other heavily trafficked areas with Polypropylene Biaxial Geogrid. Even when conditions are less than perfect, including: weak subgrades, contaminated soils, heavy loads, high granular costs and shallow-buried utilities, an engineered solution is possible. Polypropylene BX Geogrid provide structural reinforcement of roads and parking areas through excellent stiffness and interlock capabilities.
Certificate: ISO9001, SGS, CE
Features:
- Reducing aggregate fill thicknesses
- Reducing sub-excavation
- Simplifying construction
- Extending service life of pavement
- Reducing labour
- Reducing equipment requirements
- Improving bearing capacity of foundation
- Preventing cracking and subsiding
- Convenient to construct, reducing cost and mantaining expense
Improved performance for:
- Municipal roads
- Highways
- Railway ballast
- Site access roads
- Haul roads
- Parking lots
- Industrial shipping yards
- Foundation footings- and more
Application
• Base reinforcement • Subgrade reinforcement
• Slope reinforcement • Embankment stabilization
• Road Reinforcement • Expressway Reinforcement
• Railway Reinforcement • Port Reinforcement
• Airport Reinforcement • Landfill Reinforcement
• Irrigation Project • Sea Reclamation Project
Polypropylene Biaxial Geo Grid Technical Specifications
|
Specification |
Test Method |
Unit |
BX1515 |
BX2020 |
BX2525 |
BX3030 |
BX4040 |
BX1100 |
BX1200 |
BX3030L |
||||||||
|
Index |
|
Unit |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
|
Ultimate Tensile Strenth |
D6637 |
KN/m |
15 |
15 |
20 |
20 |
25 |
25 |
30 |
30 |
40 |
40 |
12.4 |
19.0 |
19.2 |
28.8 |
30 |
30 |
|
Aperture Size |
|
mm |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
39 36 33 31 |
25 |
33 |
25 |
33 |
65 |
65 |
|
Minimum Rib Thickness |
|
mm |
1.0 |
0.8 |
1.5 |
1.1 |
1.8 |
1.4 |
2.2 |
1.7 |
2.5 |
2.0 |
1.0 |
0.8 |
1.4 |
1.27 |
1.7 |
1.5 |
|
Tensile Strength @2% Strain |
D6637 |
KN/m |
6 |
6 |
7 |
7 |
9 |
9 |
11 |
11 |
15 |
15 |
4.1 |
6.6 |
6 |
9 |
11 |
11 |
|
Tensile Strength @5% Strain |
D6637 |
KN/m |
11 |
11 |
13 |
13 |
17 |
17 |
21 |
21 |
27 |
27 |
8.5 |
13.4 |
11.8 |
19.6 |
21 |
21 |
|
Junction Efficiency |
|
% |
95 |
95 |
95 |
95 |
95 |
95 |
95 |
95 |
||||||||
|
Flexural Stiffness |
D7748 |
mg-cm |
690,000 |
780,000 |
860,000 |
960,000 |
1,000,000 |
250,000 |
750,000 |
960,000 |
||||||||
|
Aperture Stability |
|
m-N/deg |
0.30 |
0.50 |
0.62 |
0.75 |
0.85 |
0.32 |
0.65 |
0.75 |
||||||||
|
Resistance to Installation Damage |
|
SC/SW/GP |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
95/93/90 |
||||||||
|
Resistance to Long Term Degradation |
|
% |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
||||||||
|
Resistance to UVDegradation |
D4355 |
% |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
||||||||
|
Minimum Cabon Black |
|
% |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
||||||||
|
Unit Weight |
|
g/m2 |
175-210 |
220-250 |
260-300 |
300-340 |
450-500 |
180-210 |
280-310 |
320-360 |
||||||||
|
Rolls Dimensions (Length, Width) |
|
m |
100*3.95 100*5 100*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 |
75*3.95 75*5 75*5.95 |
50*3.95 50*5 50*5.95 |
50*3.95 50*5 50*5.95 |
||||||||
Note: MD = Machine Direction; TD = Transverse Direction
Fibtex Laboratory is improving continuously with the purpose of assuring reliable quality.Geotec geosynthetics reserves the right to change the product specifications without further notification.

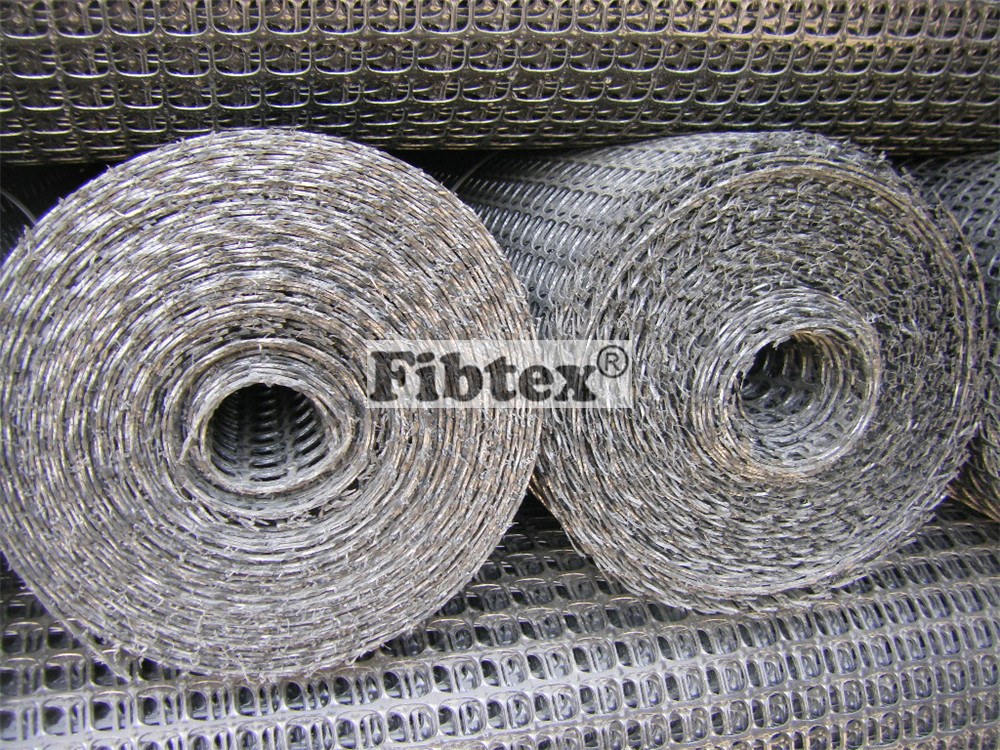

Package
- Straps for rolls tightening.
- Tape used as per requirement.
Loading Capacity For One 40HC Container
|
Product |
Rolls |
Quantity |
|
GG1515 |
180 |
53,325.0 m2 |
|
GG2020 |
220 |
43,450.0 m2 |
|
GG3030 |
130 |
25,675.0 m2 |
|
GG4040 |
90 |
17,775.0 m2 |
Loading Photos
Additional Info
| Packaging: | Nude | Productivity: | 150,000 sqm / day |
| Brand: | Fibtex | Transportation: | Ocean,Land,Air,Fedex etc. |
| Place of Origin | Shandong, China | MOQ | 1x40HC |
| HS Code | 39269090.90 | Port: | Qingdao |
