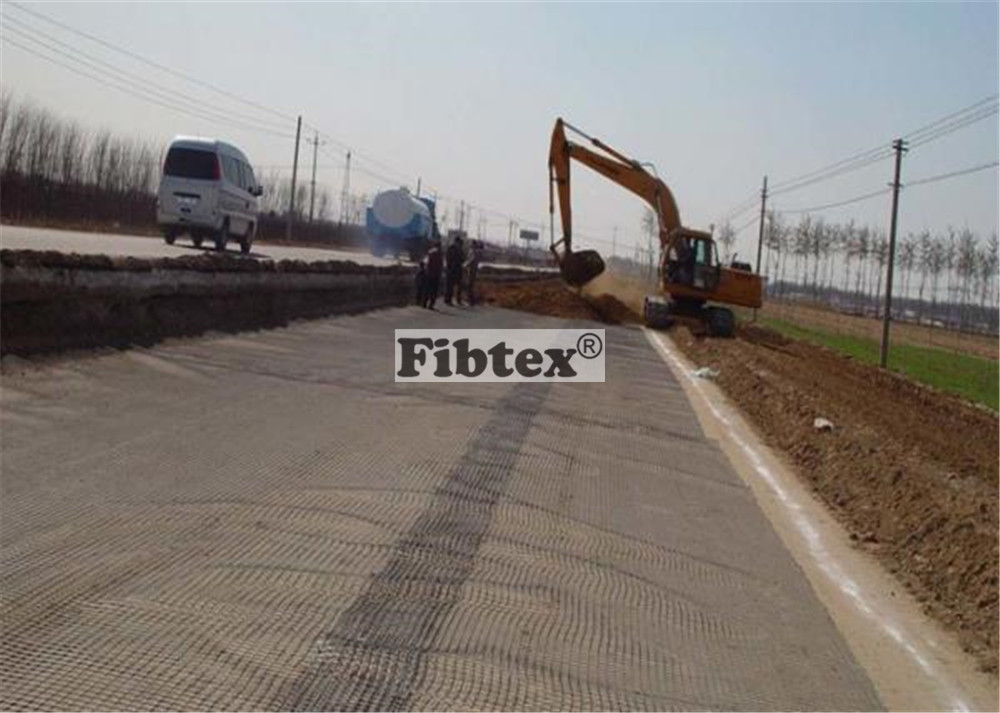

Asphalt Pavement Geogrid Mesh
Asphalt Pavement Mesh has strong tensile and it can largely increase the bearing capacity of the ground and prolongs the service life of the road. This material has high tensile strength and good wear resistant performance. Asphalt Pavement Geogrid Fabric is suitable for the reinforcement of soft soil, cement, concrete, asphalt and so on. Compared with plastic steel geogrid and polyester geogrid has better heat resistance. This material is characterized by excellent thermal stability. It performs well under high temperature.
Certificates: ISO9001, CE, ITB
Features and Benefits of Asphalt Pavement Geogrid Mesh
• Lowers maintenance costs
• Repairs severely cracked roads and postpones complete reconstruction
• Dramatically extends the life of roads, runways and parking lots
• Open aperture design promotes aggregate interlock between paving courses, greatly decreasing shear potential that is common with paving fabrics
• High stiffness, high modulus of elasticity, low elongation
• Effective bonding of grid during installation to leveling course with patented adhesive backing (standard practice of use of tack coat is recommended to enhance or promote bonding between lifts of ACC layers)
• Ease of constructability allows for Fibgrid installation and immediate placement of overlying pavement
• Suitable for all types of asphalt mixes.
• Minimizes both thermal and stress related reflective cracking.
• Reduces pavement rutting under high ambient temperatures and intense wheel loads.
• Increases the fatigue life of pavements with weak foundations.
• Extends pavement life.
• Provides cost benefits by increasing pavement life cycle.
• Fast, easy installation and recyclable.
• Reduces overlay thickness to a minimum of 50 mm.
Applications:
1. Airport runways, taxiways, roads, bridges, parking lots, jointed concrete highways to control reflective cracking.
2. High traffic pavement to control of rutting.
3. New highway construction, and other road maintenance/repair jobs to improve pavement life.
Technical Date:
|
Technical Data of Asphalt Pavement Geogrid Mesh |
|||||||||
|
Specification |
Tensile Strength (kN/m) |
Elongation |
Mesh size (mm x mm) |
Width (m)
|
Roll Length (m) |
Elastic Modulus (Gpa) |
Temperature Resistance |
||
|
Warp |
Weft |
Warp |
Weft |
||||||
|
FG2525 |
≥ 25 |
≥ 25 |
≤ 3 |
≤ 3 |
12.7x12.7 25.4x25.4 30x30 40x40 50x50
|
1 1.5 2 2.5 3 4 4.5 5 6
|
50 100 150 200 300 400 500 600 |
76 |
-100°C-280°C |
|
FG3030 |
≥ 30 |
≥ 30 |
≤ 3 |
≤ 3 |
|||||
|
FG4040 |
≥ 40 |
≥ 40 |
≤ 3 |
≤ 3 |
|||||
|
FG5050 |
≥ 50 |
≥ 50 |
≤ 3 |
≤ 3 |
|||||
|
FG6060 |
≥ 60 |
≥ 60 |
≤ 3 |
≤ 3 |
|||||
|
FG8080 |
≥ 80 |
≥ 80 |
≤ 3 |
≤ 3 |
|||||
|
FG9090 |
≥ 80 |
≥ 80 |
≤ 3 |
≤ 3 |
|||||
|
FG100100 |
≥ 100 |
≥ 100 |
≤ 3 |
≤ 3 |
|||||
|
FG120120 |
≥ 120 |
≥ 120 |
≤ 3 |
≤ 3 |
|||||
|
FG150150 |
≥ 150 |
≥ 150 |
≤ 3 |
≤ 3 |
|||||
|
FG180180 |
≥ 180 |
≥ 180 |
≤ 3 |
≤ 3 |
|||||
|
FG200200 |
≥ 200 |
≥ 200 |
≤ 3 |
≤ 3 |
|||||
|
FG300300 |
≥ 300 |
≥ 300 |
≤ 3 |
≤ 3 |
|||||
|
FG400400 |
≥ 400 |
≥ 400 |
≤ 3 |
≤ 3 |
|||||
|
Physical and Chemical Stability |
Good |
||||||||
|
Pressure Sensative Glue |
Available |
||||||||
|
Coating Material |
Modified Asphalt Polymer, Acrylic Acid Polymer, SBR or PVC |
||||||||
|
Resin Content (%) |
More than 20% |
||||||||
|
Composited or Sewed with Non-Woven Fabric or Geotextile |
25g, 30g, 40g or 50g/m2 PP no-woven fabric with one side or two side by pressure sensative glue or warp knitted sewing 100g/m2, 120g/m2 or 140g/m2 Polyester continous filament needle punched geotextile by warp knitted sewing. |
||||||||
Loading photos
Additional Info
| Packaging: | Cardboard/PVC tube + PE film | Productivity: | 200,000 sqm / day |
| Brand: | Fibtex | Transportation: | Ocean,Land,Air,Fedex etc. |
| Place of Origin | Shandong, China | MOQ | 1x40HC |
| HS Code | 70195900.00 | Port: | Qingdao |
