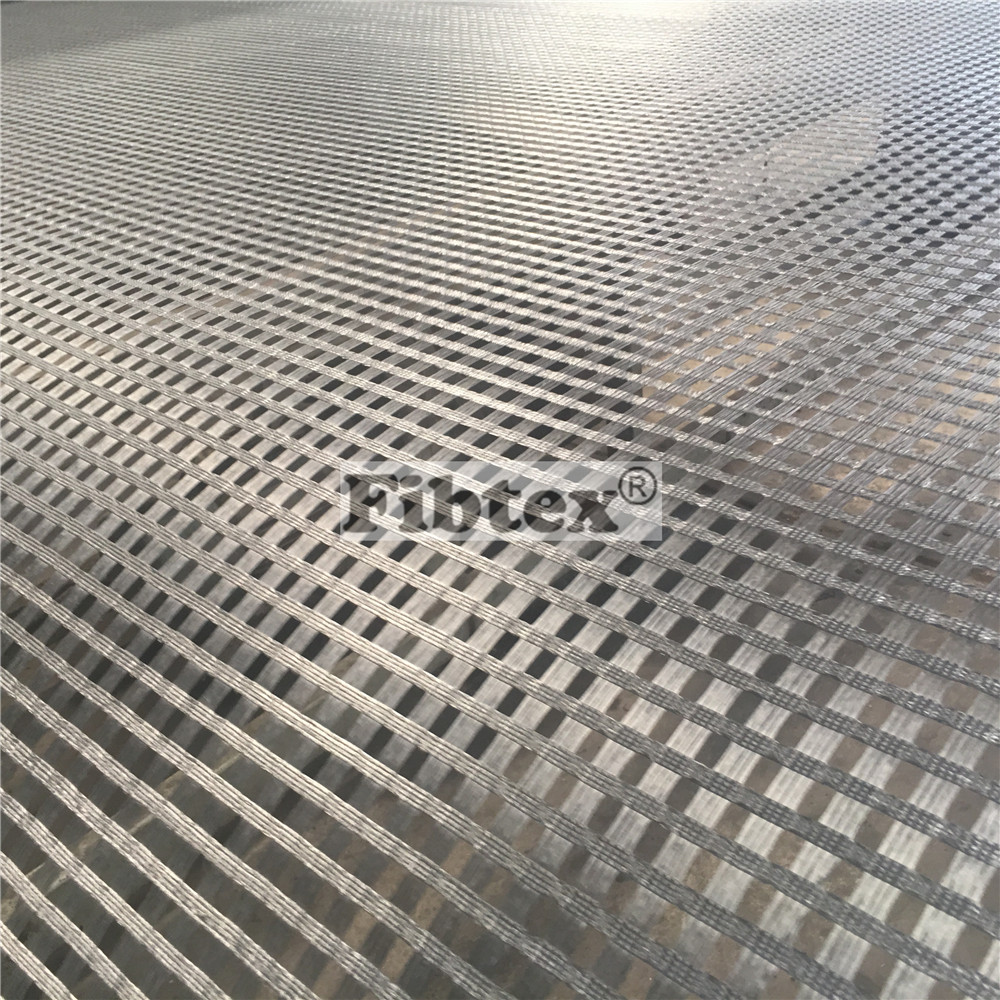

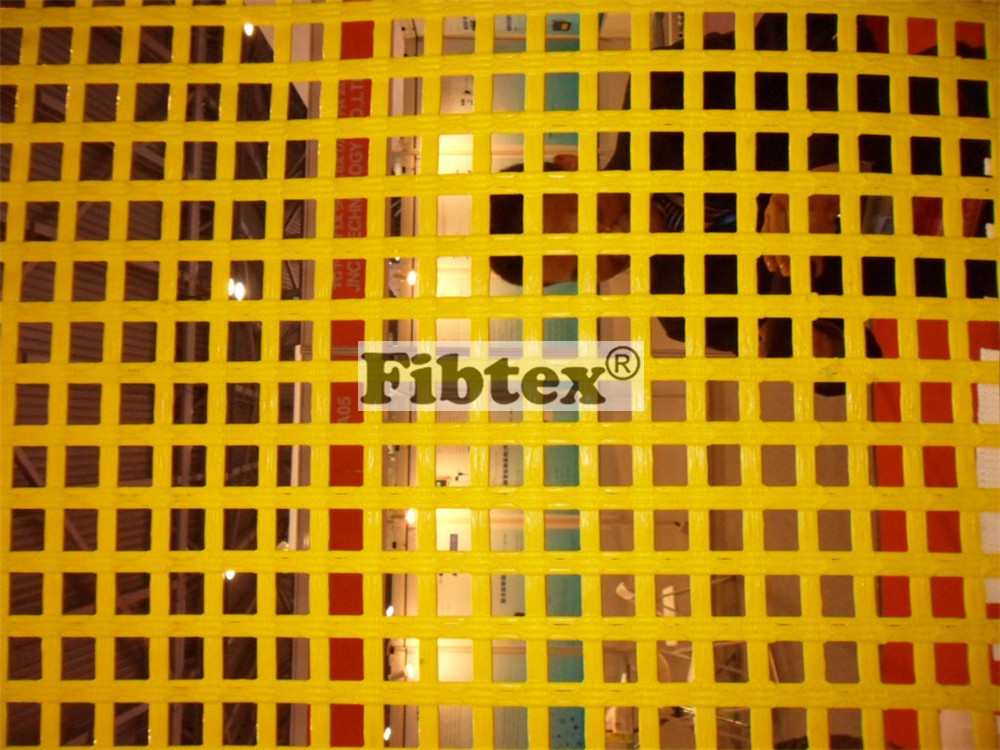

Warp Knitting Polyester Geogrid

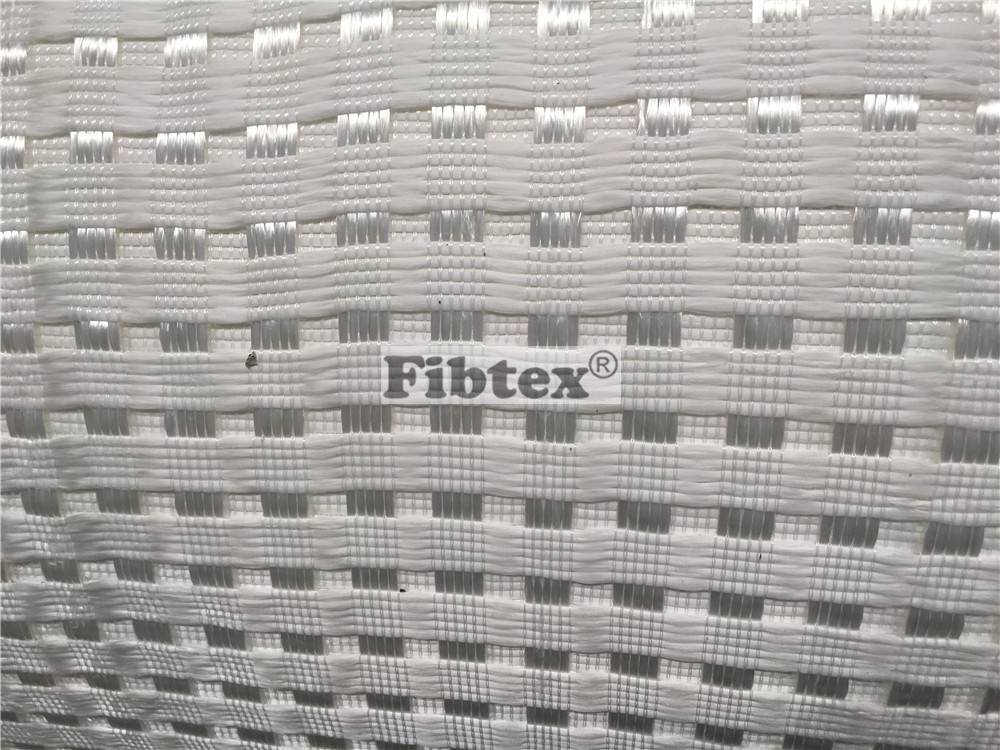

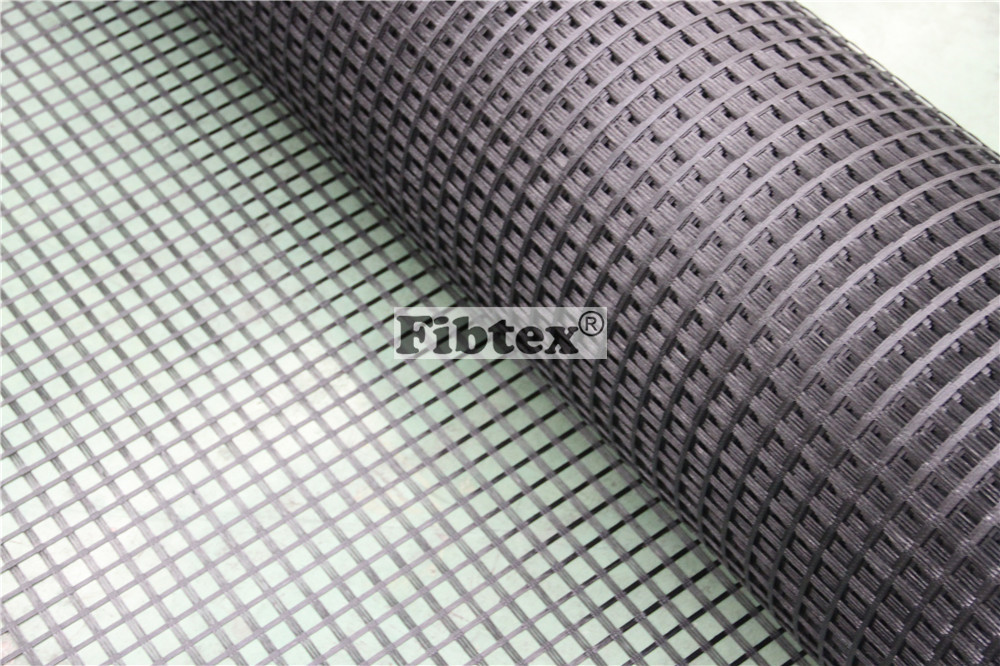

Warp Knitting Polyester Grids have grid structures with apertures of 12-50 mm between longitudinal and transverse ribs. Warp Knitted Polyester Geogrid are made with a high tenacity polyester filament using a knitting process. Commonly, Warp Knitting Polyester Grid are then coated with copolymer resins such as PVC (polyvinylchloride), bitumen, PP (polypropylene),acrylic resins, latex and other rubbery materials, which contain a light stabilizer and antioxidant.
Certificate: ISO9002, CE, ITB
Features and Benefits
- High tensile force at low elongation
- High ultimate tensile strength
- Excellent long-term behaviour due to low creep characteristics
- High resistance to soil micro-organisms and chemicals, UV radiation and mechanical damage
- Good grid/soil interaction provided by selecting the geogrid mesh to accommodate the adjacent material
- Problem-free installation due to low product weight and excellent flexibility even in extreme cold
- Very wide range of tensile strengths in length and width
Applications
- Load-bearing layers in roadway, railway, hydraulic, ocean and municipal works, airport construction
- Access roads and transportation routes
- Retaining walls and extra-steep earthwork slopes
- Slope and embrankment stabilisation
- Noise reduction barriers
- Reclamation of industrial wasteland
- Earth embankments over piles
- Landfill
- Bridging of underground voids or sinkholes
- Grid mining recovery screening
Technical Data
|
Type |
Item No. |
Tensile Strength |
Elongation |
Mesh Size |
Width |
|
|
MD |
CD |
(%) |
(mm*mm) |
(m) |
||
|
Polyester Uniaxial Geogrid |
PET5030 |
50 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
PET6030 |
60 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET8030 |
80 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET10030 |
100 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET11030 |
110 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET120/30 |
120 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET15030 |
150 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET20030 |
200 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET30030 |
300 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET40050 |
400 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET50050 |
500 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET60050 |
600 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET80050 |
800 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
Polyester Biaxial Geogrid
|
PET3030 |
30 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
PET4040 |
40 |
40 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET5050 |
50 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET6060 |
60 |
60 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET8080 |
80 |
80 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET9090 |
90 |
90 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET100100 |
100 |
100 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET110110 |
110 |
110 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET120120 |
120 |
120 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET150150 |
150 |
150 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET180180 |
180 |
180 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET200200 |
200 |
200 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET300300 |
300 |
300 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET350350 |
350 |
350 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET400400 |
400 |
400 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET450450 |
450 |
450 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET500500 |
500 |
500 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET600600 |
600 |
600 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET700700 |
700 |
700 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET800800 |
800 |
800 |
<13 or 10 |
12-50 |
1-6 |
|
Loading photos
Additional Info
| Packaging: | Cardboard/PVC tube + PE film | Productivity: | 200,000 sqm / day |
| Brand: | Fibtex | Transportation: | Ocean,Land,Air,Fedex etc. |
| Place of Origin | Shandong, China | MOQ | 1x40HC |
| HS Code | 39269090.90 | Port: | Qingdao |
