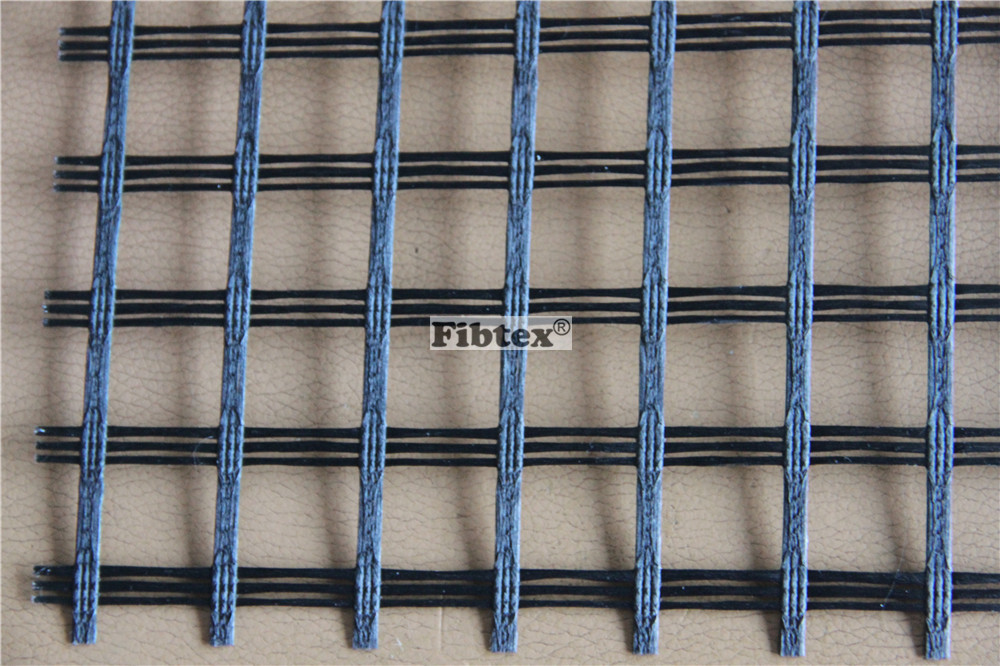

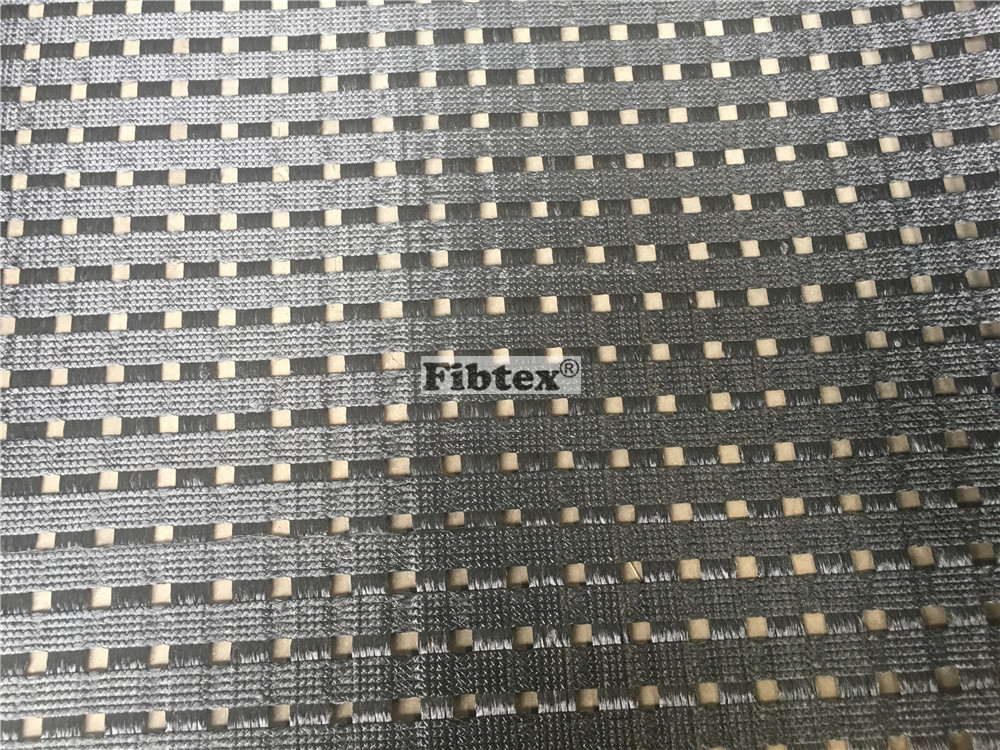

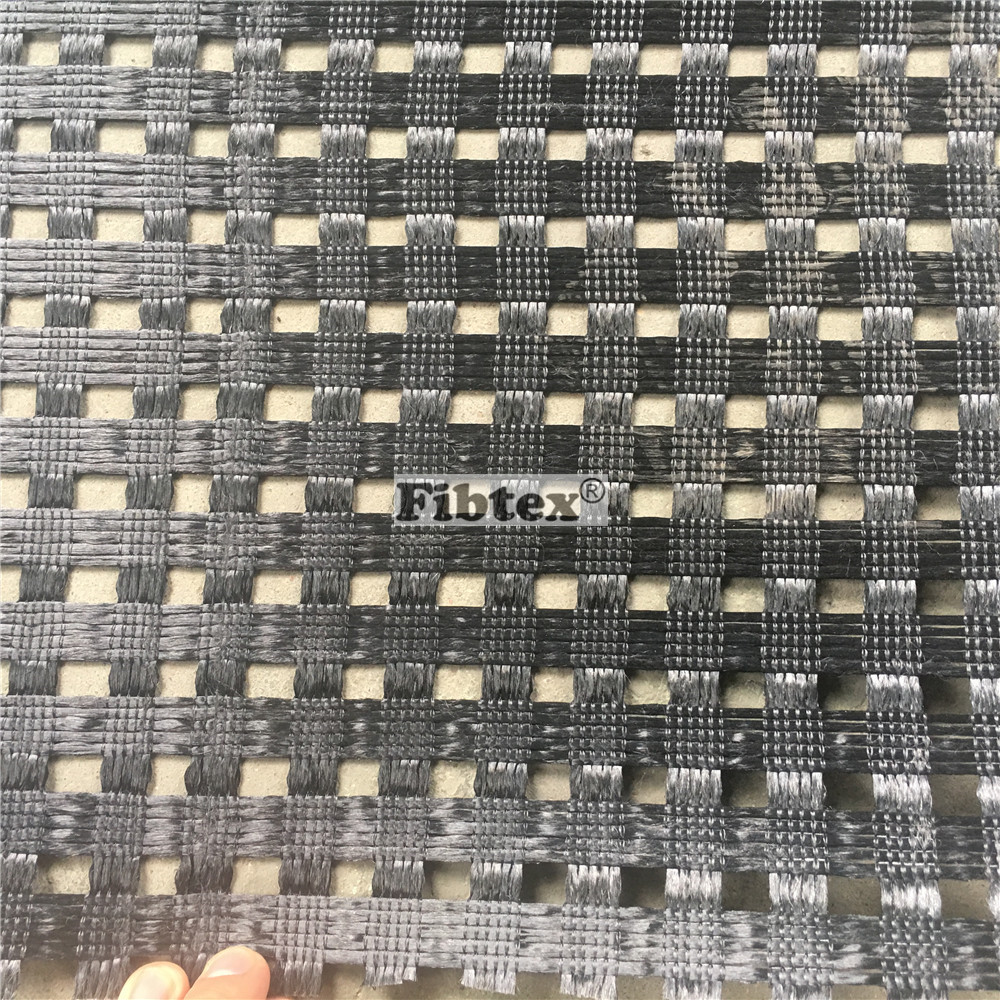

SBR Coated Polyester Geogrid
SBR Coated PET Geogrid is easily combined with gravel and soil. SBR Coated Polyester Geo Grid can be installed in both directions. Adds strength, stability and longevity. It helps reduce stress and load transfer to the structure. Soil separation for added stability. SBR Coated PET Geo Grid is widely used for retaining walls system, steep slopes, sub-grade stabilization and Erosion control. It is an ideal geosynthetics for basal reinforcement.
Certificate: ISO9002, CE, ITB
Features and Benefits
- High tensile force at low elongation
- High ultimate tensile strength
- Excellent long-term behaviour due to low creep characteristics
- High resistance to soil micro-organisms and chemicals, UV radiation and mechanical damage
- Good grid/soil interaction provided by selecting the geogrid mesh to accommodate the adjacent material
- Problem-free installation due to low product weight and excellent flexibility even in extreme cold
- Very wide range of tensile strengths in length and width
Applications of SBR Coated Polyester Geogrid
- Load-bearing layers in roadway, railway, hydraulic, ocean and municipal works, airport construction
- Access roads and transportation routes
- Retaining walls and extra-steep earthwork slopes
- Slope and embrankment stabilisation
- Noise reduction barriers
- Reclamation of industrial wasteland
- Earth embankments over piles
- Landfill
- Bridging of underground voids or sinkholes
- Grid mining recovery screening
Technical Data
|
Type |
Item No. |
Tensile Strength |
Elongation |
Mesh Size |
Width |
|
|
MD |
CD |
(%) |
(mm*mm) |
(m) |
||
|
Polyester Uniaxial Geogrid |
PET5030 |
50 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
PET6030 |
60 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET8030 |
80 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET10030 |
100 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET11030 |
110 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET120/30 |
120 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET15030 |
150 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET20030 |
200 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET30030 |
300 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET40050 |
400 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET50050 |
500 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET60050 |
600 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET80050 |
800 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
Polyester Biaxial Geogrid
|
PET3030 |
30 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
PET4040 |
40 |
40 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET5050 |
50 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET6060 |
60 |
60 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET8080 |
80 |
80 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET9090 |
90 |
90 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET100100 |
100 |
100 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET110110 |
110 |
110 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET120120 |
120 |
120 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET150150 |
150 |
150 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET180180 |
180 |
180 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET200200 |
200 |
200 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET300300 |
300 |
300 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET350350 |
350 |
350 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET400400 |
400 |
400 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET450450 |
450 |
450 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET500500 |
500 |
500 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET600600 |
600 |
600 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET700700 |
700 |
700 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET800800 |
800 |
800 |
<13 or 10 |
12-50 |
1-6 |
|

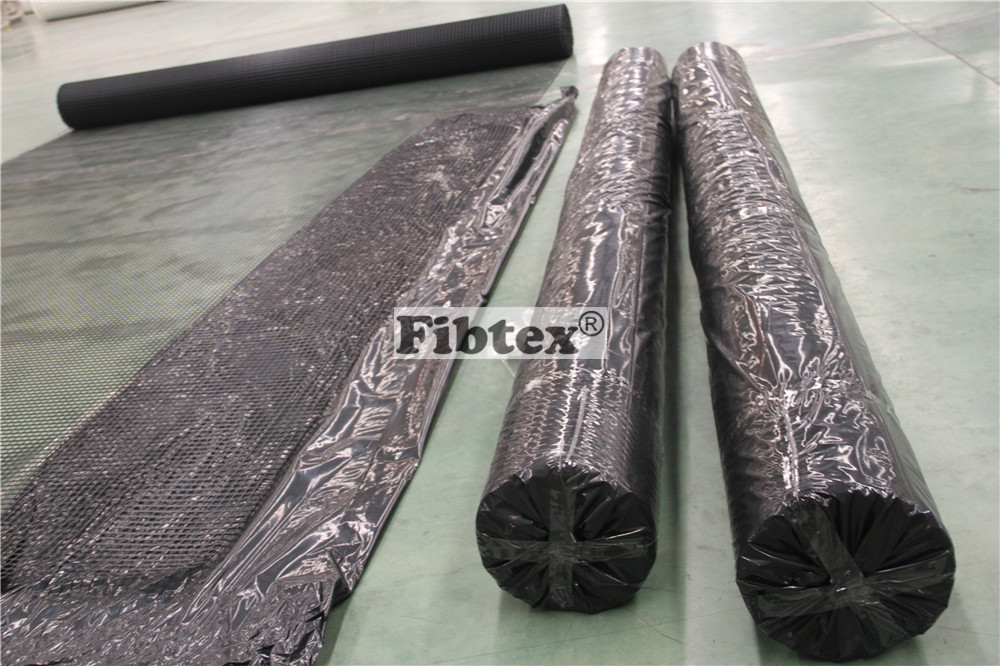

Loading photos
Additional Info
| Packaging: | Cardboard/PVC tube + PE film | Productivity: | 200,000 sqm / day |
| Brand: | Fibtex | Transportation: | Ocean,Land,Air,Fedex etc. |
| Place of Origin | Shandong, China | MOQ | 1x40HC |
| HS Code | 39269090.90 | Port: | Qingdao |
