Polyester Geogrid For Road Reinforcement
The yarn substrate is coated with black polyvinyl chloride (PVC) to develop dimensional stability under tension and protect the product from U.V. and installation damage. Road Reinforcement Polyester Geogrid are non-biodegradable and resistant to most soil chemicals, acids, and alkalis with a pH range of 5 to 8. Road Reinforcement Polyester Geogrids are manufactured to meet or exceed the following machine direction (MD) characteristics.
Certificate: ISO9002, CE, ITB
Features and Benefits
- High tensile force at low elongation
- High ultimate tensile strength
- Excellent long-term behaviour due to low creep characteristics
- High resistance to soil micro-organisms and chemicals, UV radiation and mechanical damage
- Good grid/soil interaction provided by selecting the geogrid mesh to accommodate the adjacent material
- Problem-free installation due to low product weight and excellent flexibility even in extreme cold
- Very wide range of tensile strengths in length and width
Applications of Polyester Geogrid For Road Reinforcement
- Load-bearing layers in roadway, railway, hydraulic, ocean and municipal works, airport construction
- Access roads and transportation routes
- Retaining walls and extra-steep earthwork slopes
- Slope and embrankment stabilisation
- Noise reduction barriers
- Reclamation of industrial wasteland
- Earth embankments over piles
- Landfill
- Bridging of underground voids or sinkholes
- Grid mining recovery screening
Technical Data
|
Type |
Item No. |
Tensile Strength |
Elongation |
Mesh Size |
Width |
|
|
MD |
CD |
(%) |
(mm*mm) |
(m) |
||
|
Polyester Uniaxial Geogrid |
PET5030 |
50 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
PET6030 |
60 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET8030 |
80 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET10030 |
100 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET11030 |
110 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET120/30 |
120 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET15030 |
150 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET20030 |
200 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET30030 |
300 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET40050 |
400 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET50050 |
500 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET60050 |
600 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET80050 |
800 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
Polyester Biaxial Geogrid
|
PET3030 |
30 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
PET4040 |
40 |
40 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET5050 |
50 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET6060 |
60 |
60 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET8080 |
80 |
80 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET9090 |
90 |
90 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET100100 |
100 |
100 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET110110 |
110 |
110 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET120120 |
120 |
120 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET150150 |
150 |
150 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET180180 |
180 |
180 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET200200 |
200 |
200 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET300300 |
300 |
300 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET350350 |
350 |
350 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET400400 |
400 |
400 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET450450 |
450 |
450 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET500500 |
500 |
500 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET600600 |
600 |
600 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET700700 |
700 |
700 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET800800 |
800 |
800 |
<13 or 10 |
12-50 |
1-6 |
|

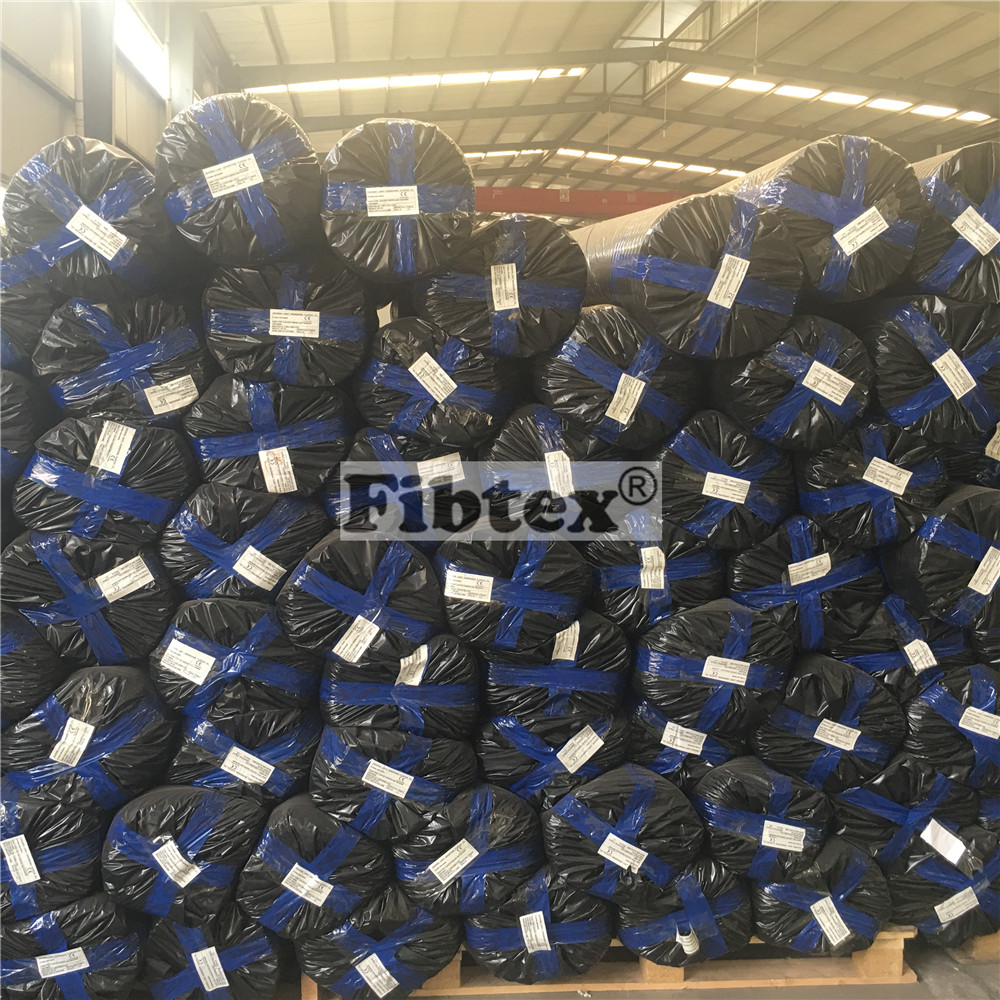

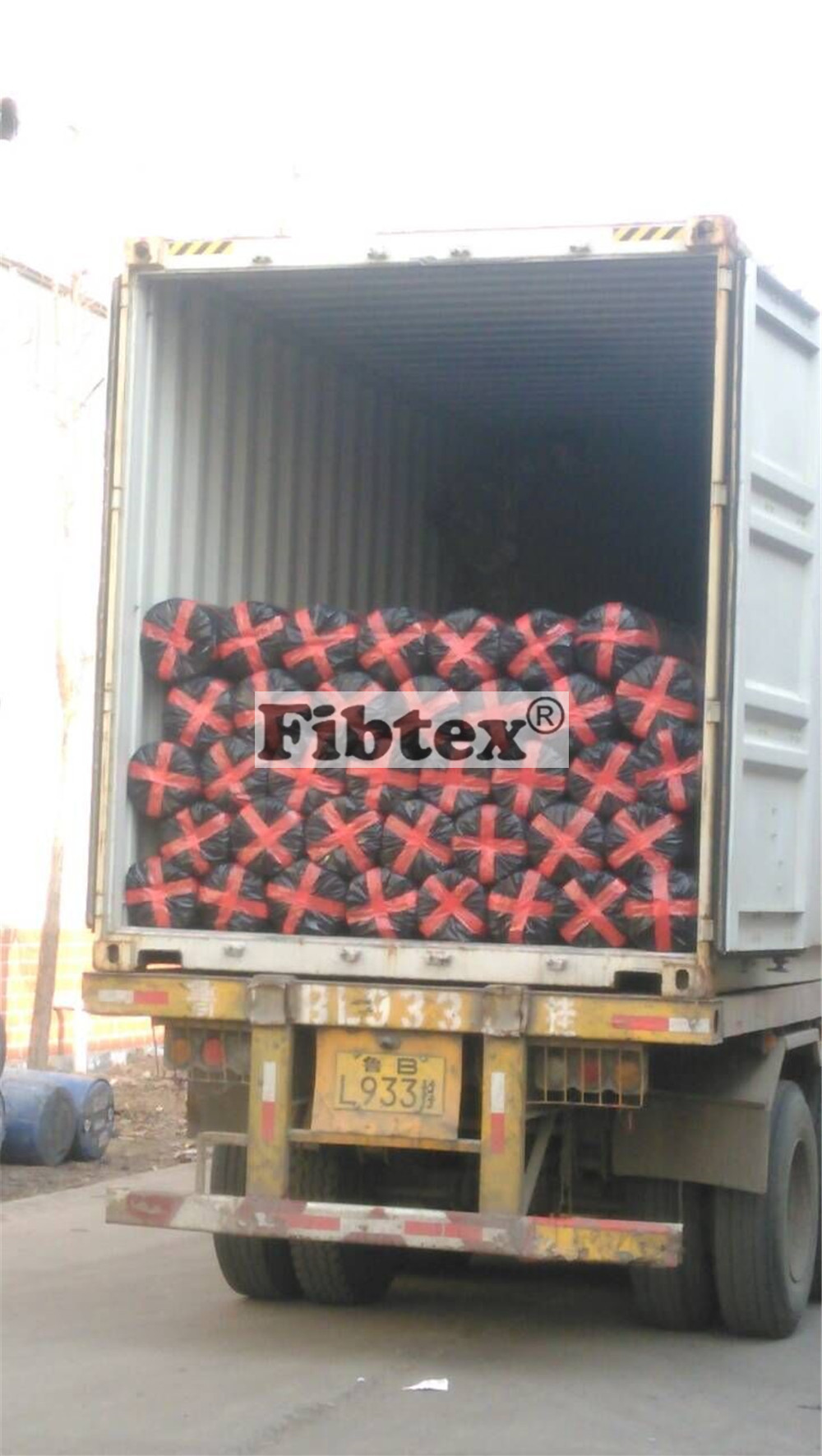

Loading photos
Additional Info
| Packaging: | Cardboard/PVC tube + PE film | Productivity: | 200,000 sqm / day |
| Brand: | Fibtex | Transportation: | Ocean,Land,Air,Fedex etc. |
| Place of Origin | Shandong, China | MOQ | 1x40HC |
| HS Code | 39269090.90 | Port: | Qingdao |
