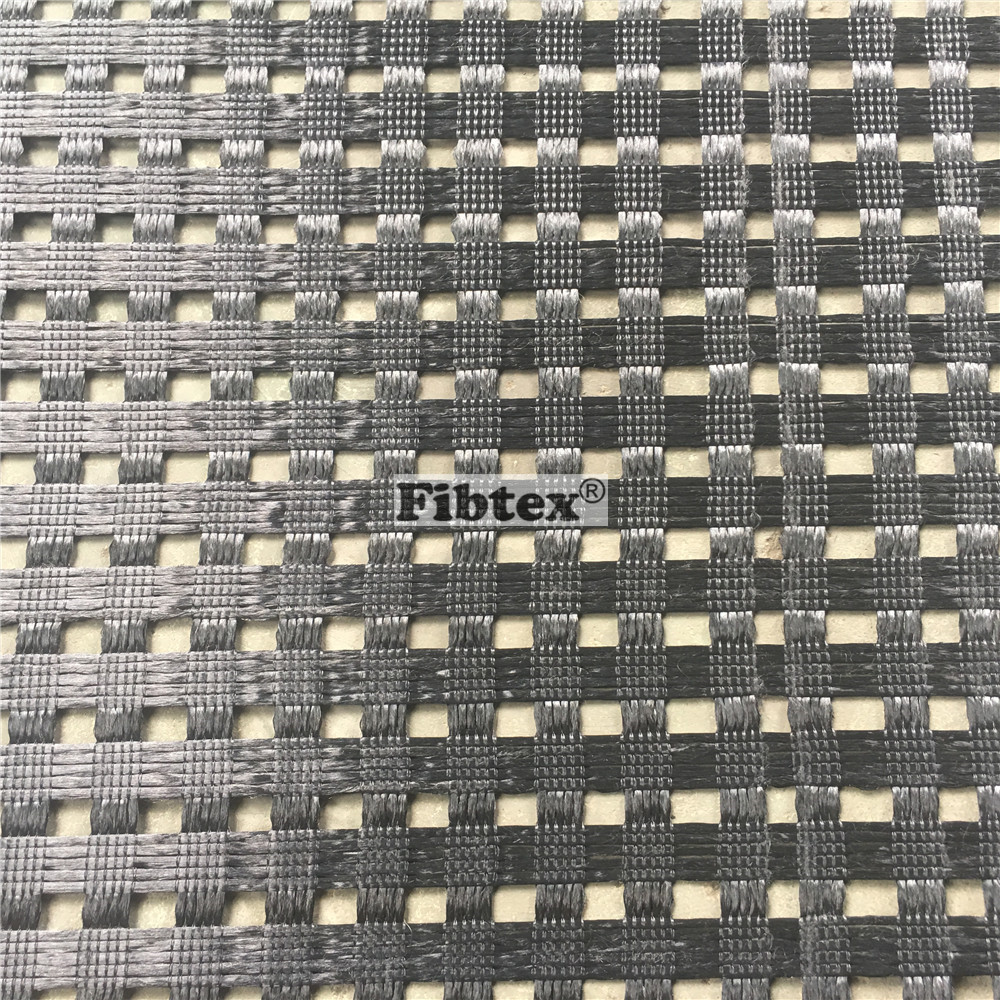

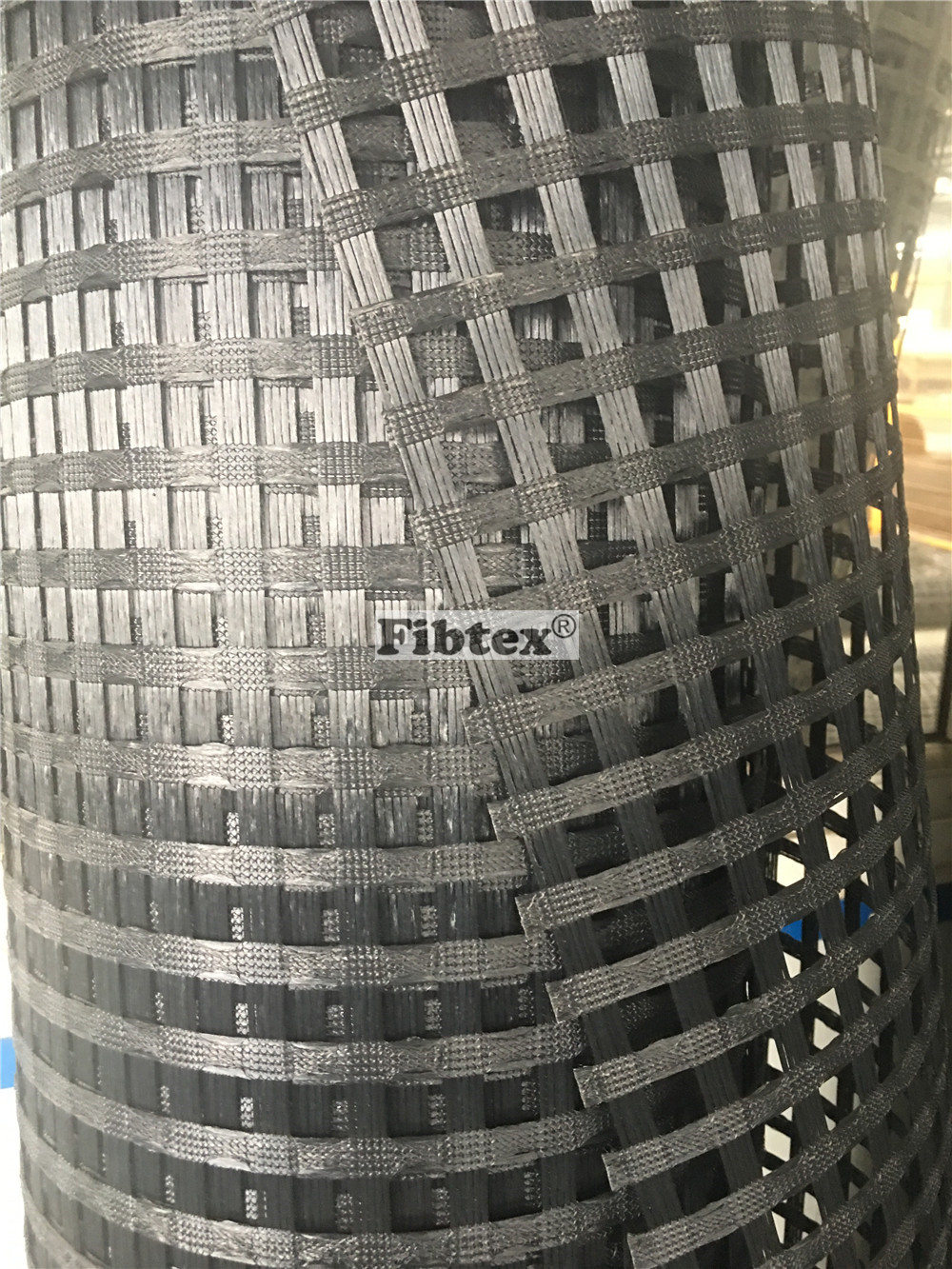

Soil Reinforcement Polyester Geogrid
Soil Reinforcement Polyester Geogrids are in the form of open grids so that soil can strike through the apertures and the two materials interlock together to give composite behaviour. Soil Reinforcement PET Geogrid are commonly applicable in the construction of retaining walls, steep slopes, roadway bases and foundations. Soil Reinforcement Polyester Geo Grid work by interlocking with the granular or soil material placed over them. The apertures allow for strike-through of the cover soil material which then interlock with the ribs (flat straps/bars) Providing confinement of the overlaying granular/soil material due to the stiffness and strength of ribs.
Certificate: ISO9002, CE, ITB
Features and Benefits
- High tensile force at low elongation
- High ultimate tensile strength
- Excellent long-term behaviour due to low creep characteristics
- High resistance to soil micro-organisms and chemicals, UV radiation and mechanical damage
- Good grid/soil interaction provided by selecting the geogrid mesh to accommodate the adjacent material
- Problem-free installation due to low product weight and excellent flexibility even in extreme cold
- Very wide range of tensile strengths in length and width
Applications of Soil Reinforcement Polyester Geogrid
- Load-bearing layers in roadway, railway, hydraulic, ocean and municipal works, airport construction
- Access roads and transportation routes
- Retaining walls and extra-steep earthwork slopes
- Slope and embrankment stabilisation
- Noise reduction barriers
- Reclamation of industrial wasteland
- Earth embankments over piles
- Landfill
- Bridging of underground voids or sinkholes
- Grid mining recovery screening
Technical Data
|
Type |
Item No. |
Tensile Strength |
Elongation |
Mesh Size |
Width |
|
|
MD |
CD |
(%) |
(mm*mm) |
(m) |
||
|
Polyester Uniaxial Geogrid |
PET5030 |
50 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
PET6030 |
60 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET8030 |
80 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET10030 |
100 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET11030 |
110 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET120/30 |
120 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET15030 |
150 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET20030 |
200 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET30030 |
300 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET40050 |
400 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET50050 |
500 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET60050 |
600 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET80050 |
800 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
Polyester Biaxial Geogrid
|
PET3030 |
30 |
30 |
<13 or 10 |
12-50 |
1-6 |
|
PET4040 |
40 |
40 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET5050 |
50 |
50 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET6060 |
60 |
60 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET8080 |
80 |
80 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET9090 |
90 |
90 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET100100 |
100 |
100 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET110110 |
110 |
110 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET120120 |
120 |
120 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET150150 |
150 |
150 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET180180 |
180 |
180 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET200200 |
200 |
200 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET300300 |
300 |
300 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET350350 |
350 |
350 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET400400 |
400 |
400 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET450450 |
450 |
450 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET500500 |
500 |
500 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET600600 |
600 |
600 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET700700 |
700 |
700 |
<13 or 10 |
12-50 |
1-6 |
|
|
PET800800 |
800 |
800 |
<13 or 10 |
12-50 |
1-6 |
|

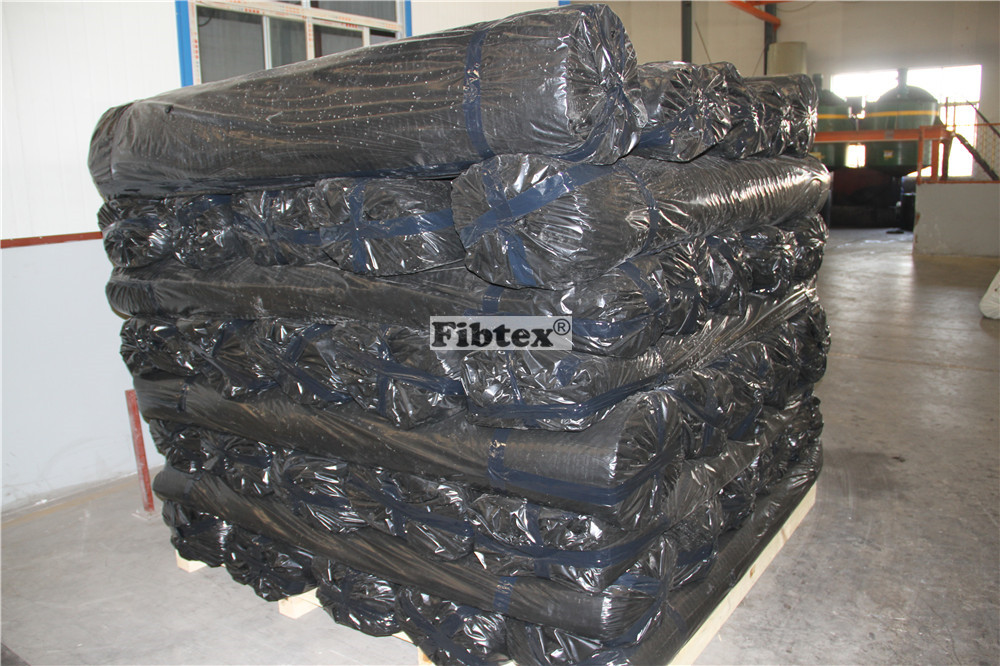

Loading photos
Additional Info
| Packaging: | Cardboard/PVC tube + PE film | Productivity: | 200,000 sqm / day |
| Brand: | Fibtex | Transportation: | Ocean,Land,Air,Fedex etc. |
| Place of Origin | Shandong, China | MOQ | 1x40HC |
| HS Code | 39269090.90 | Port: | Qingdao |
