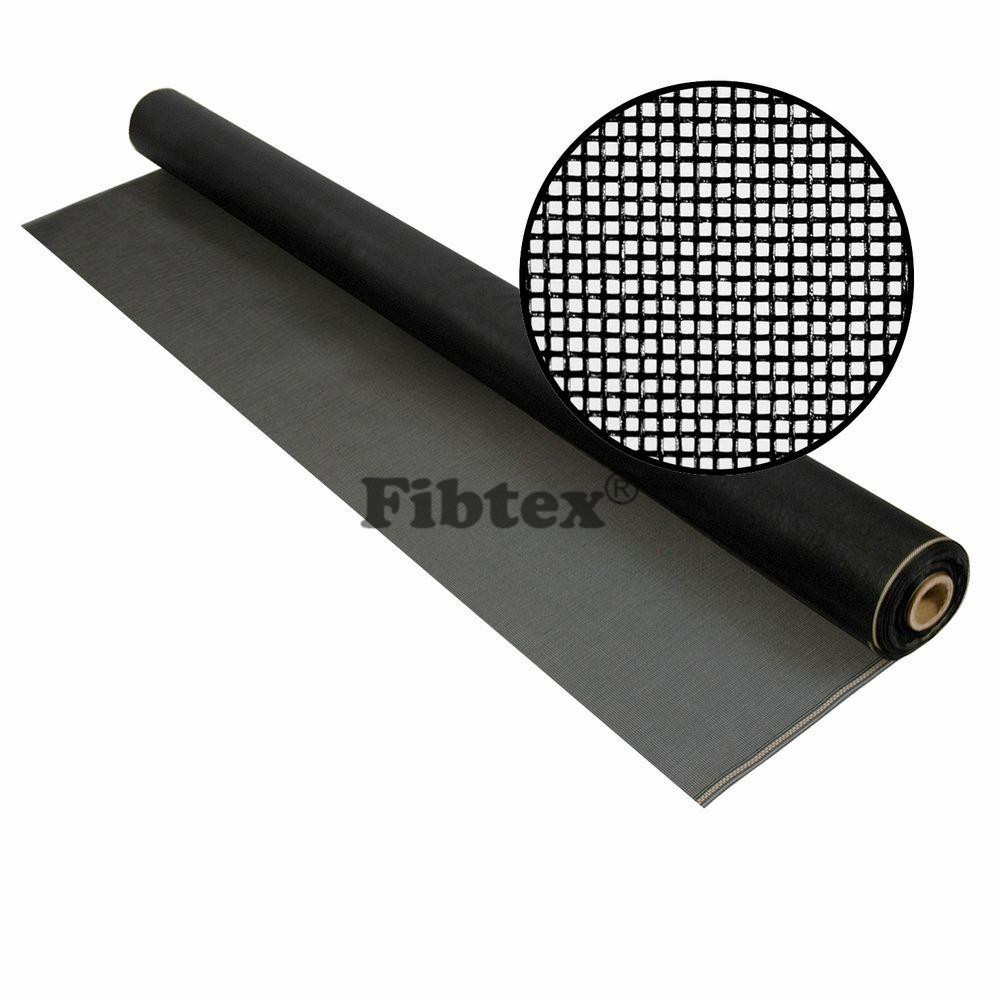

24 in. X 100in. Fiberglass Mosquito Screen Mesh
Fiberglass Mosquito Screen Mesh primarily maintain the view and airflow of windows while protecting against insects from flying or crawling inside the house. Fiberglass Mosquito Screening are not generally intended for preventing young children from falling out of windows, stopping home intruders, or defending against larger animals. Mosquito Screen Mesh serves to keep leaves, debris, insects, birds, and other animals from entering a building or a screened structure such as a porch, without blocking fresh air-flow.
Certificates: ISO9001, CE, SGS, UL
Features:
1. Non-toxic and tasteless, Eco-friendly.
2. Resistance for burning, corrosive and static, anti-flame, flame retardant.
3. Filter UV radiation automatically and protect the family health.
4. The vinyl coated can supply the bright color, high strength and strong scalability.
5. Silver grey and charcoal color can reduce glare and improve visibility.
6. Easy to install and clean.
7. Weather resistance
8. Uniform mesh size, firm fixing and high tensile strength
9. Very soft and flexible, will not dent, crease or unravel..
10. Durable and resistance to the element, even salt air.
Application
Fiberglass insect screen is widely used as windows or doors screens to keep out insects, such as the mosquitoes, flies and bugs in the construction, home, office, orchard, ranch and other places. It can filter UV radiation, so it can also be used as the patio and pool doors or screens.
Technical Data
Mesh Size: 14x14, 16x14, 16x16, 18x14, 18x16, 18x18, 18x20, 20x20 etc.
Width: 24", 28", 30", 32", 34", 36", 40", 42", 48", 60", 72", 84", 108''
Length: 25', 50', 100', 300', 1000' etc.
Unit Weight: 90-160g/m2

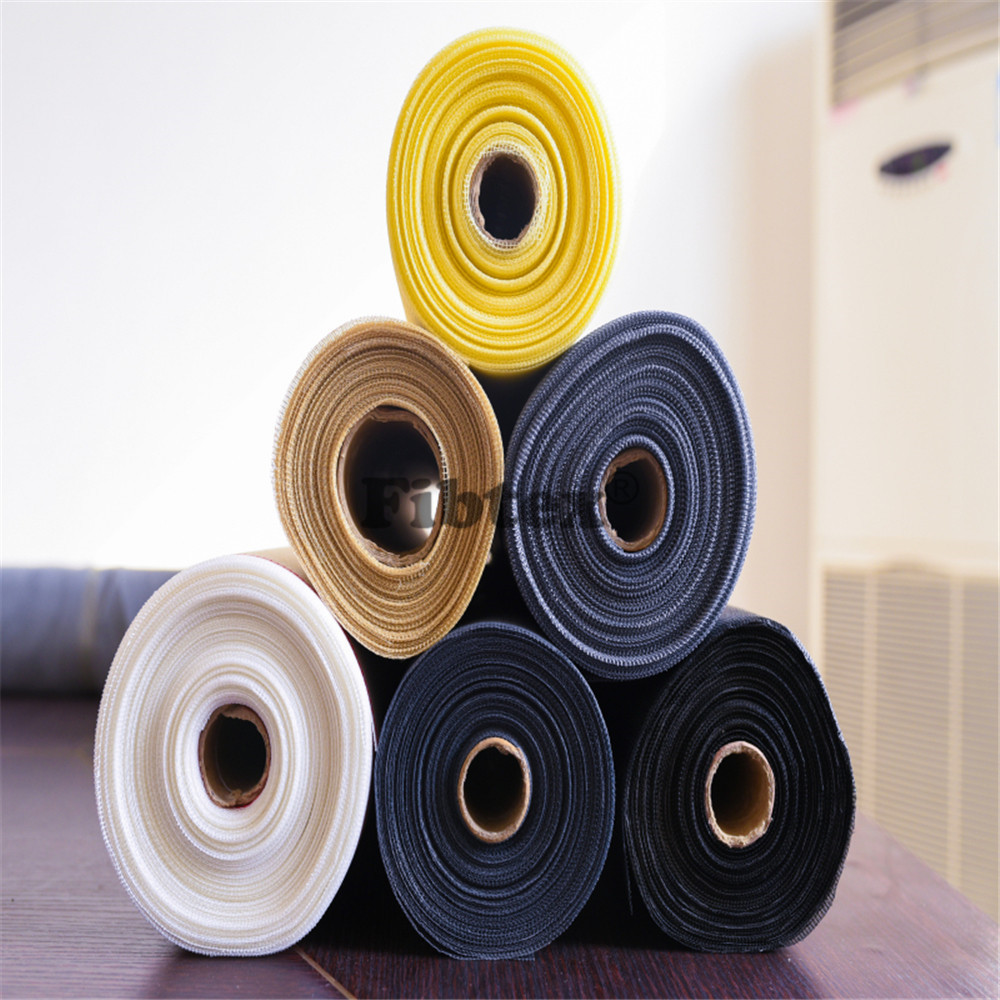

Colour: charcoal, grey, brown, white, grey white,yellow, blue, green, red etc.
|
|
Metric |
Imperial |
|
Fabric Construction |
7 x 6 ends/cm |
18 x 16 ends/inch |
|
Mass per Unit Area |
115g/m3 |
3.4oz/Sq.Yd |
|
Width |
279mm to 2743mm |
11 to 108 inches |
|
Width Tolerances |
-0.0/+12.0mm |
-0.0/+0.5 inch |
|
Roll Length |
30m, 50m, 100m, 300m etc |
100 feet, 164 feets, 228 feet, 600 feet |
|
Roll Tolerances |
-0.0/+500mm |
-0.0/+1.6ft |
|
Colour |
Charcoal, Silver Grey, Green, Bronze, White, Blue, Purple, Red etc. |
|
|
Characteristics |
Test Method |
Units |
Tolerances |
Nominal Value |
|
Area Weight |
ASTM D3776 |
g/m2 |
+/-3%
|
115.0 |
|
Construction |
ASTM D3775 |
Ends/Inch |
+/-10% |
18 x 16 |
|
Breaking Strength |
ASTM D5035 |
N N |
+/-10% |
350 (Warp) 275 (Weft) |
|
Fabric Stability |
ASTM D4912 |
N N |
+/-10% |
53 (Warp) 44 (Weft) |
|
Fabric Stiffness |
ASTM D3656 |
Gurley Points Gurley Points |
+/-10% |
2.7-4.5 (Warp) 2.7-4.5 (Warp) |
|
Flame Resistance |
ASTM D4372 |
|
|
PASS |
|
Coated Yarn Thickness |
ASTM D1777-96 |
Inch (mm) |
+/-0.01'' |
0.011 (0.280) |
|
Standard Dimensions |
Width Length |
Inch (mm) Foot (m) |
+/-2mm +/-1% |
14-108 (356-2743) 100/600(30.5/183) |
|
Standards Conformity |
ASTM D 3656-04 |
|
|
|

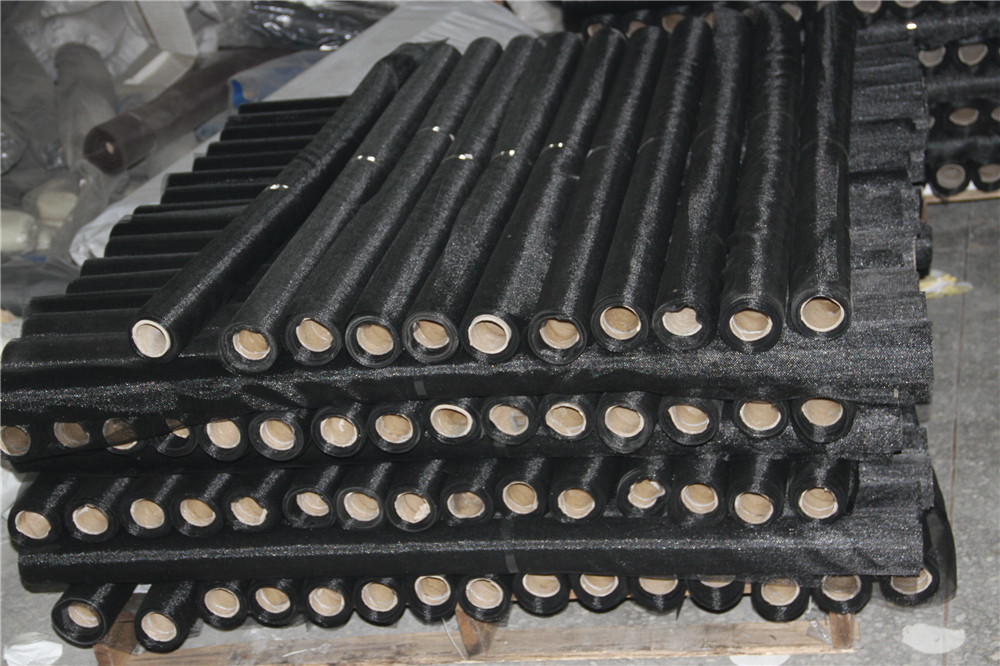

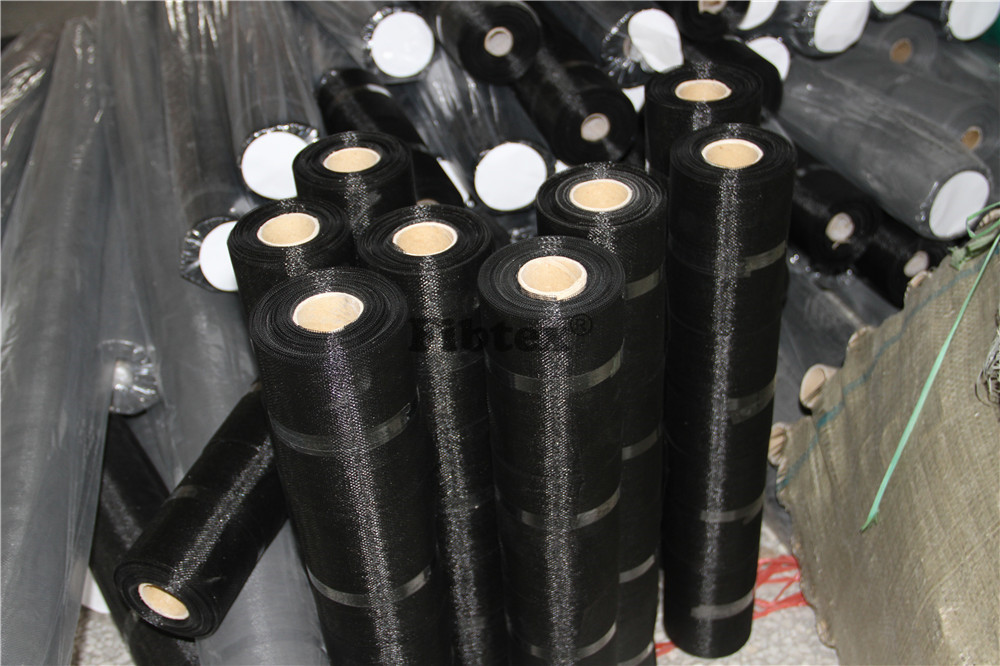

Package
1. Rolling on paper tube, each roll in a poly bag, 1-6 rolls in a carton
2. Rolling on paper tube, each roll in a poly bag, 6-10 rolls in a woven bag
3. Custom package can be available.
One 20'container: 75000m2-90000m2
One 40'container: 200000m2-220000m2
Additional Info
| Packaging: | Cardboard tube/Plastic bag/Polybag/Carton/Pallet | Productivity: | 50,000 sqm / day |
| Brand: | Fibtex | Transportation: | Ocean,Land,Air,Fedex etc. |
| Place of Origin | Shandong, China | MOQ | 10,000 sqm |
| HS Code | 70199090.90 | Port: | Qingdao |
